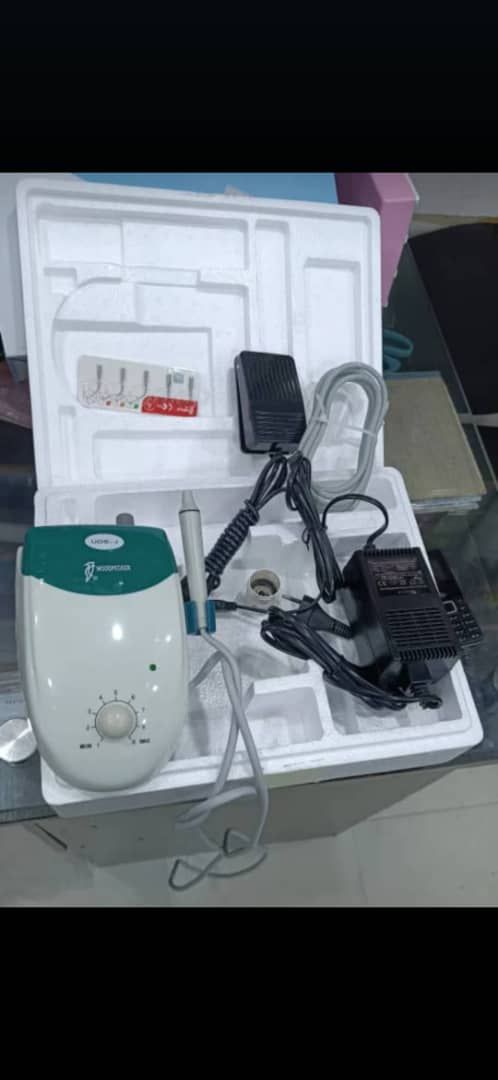

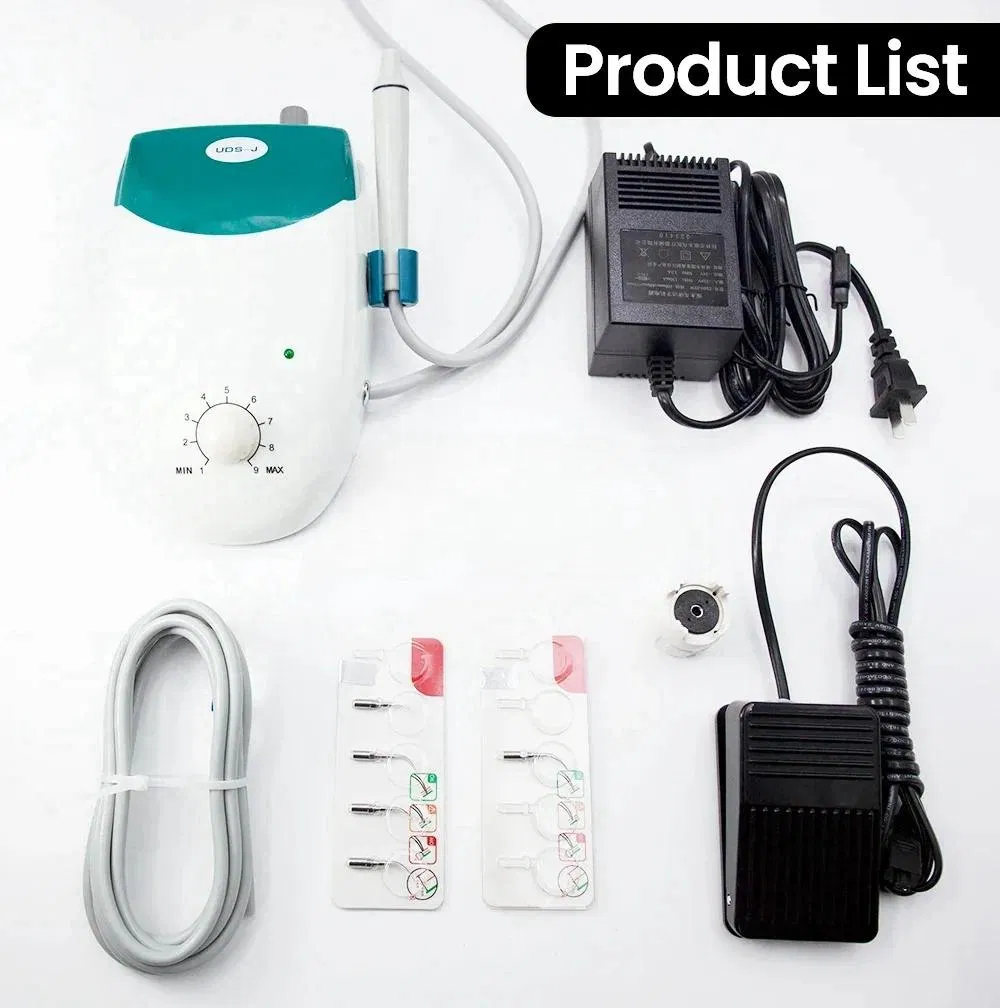

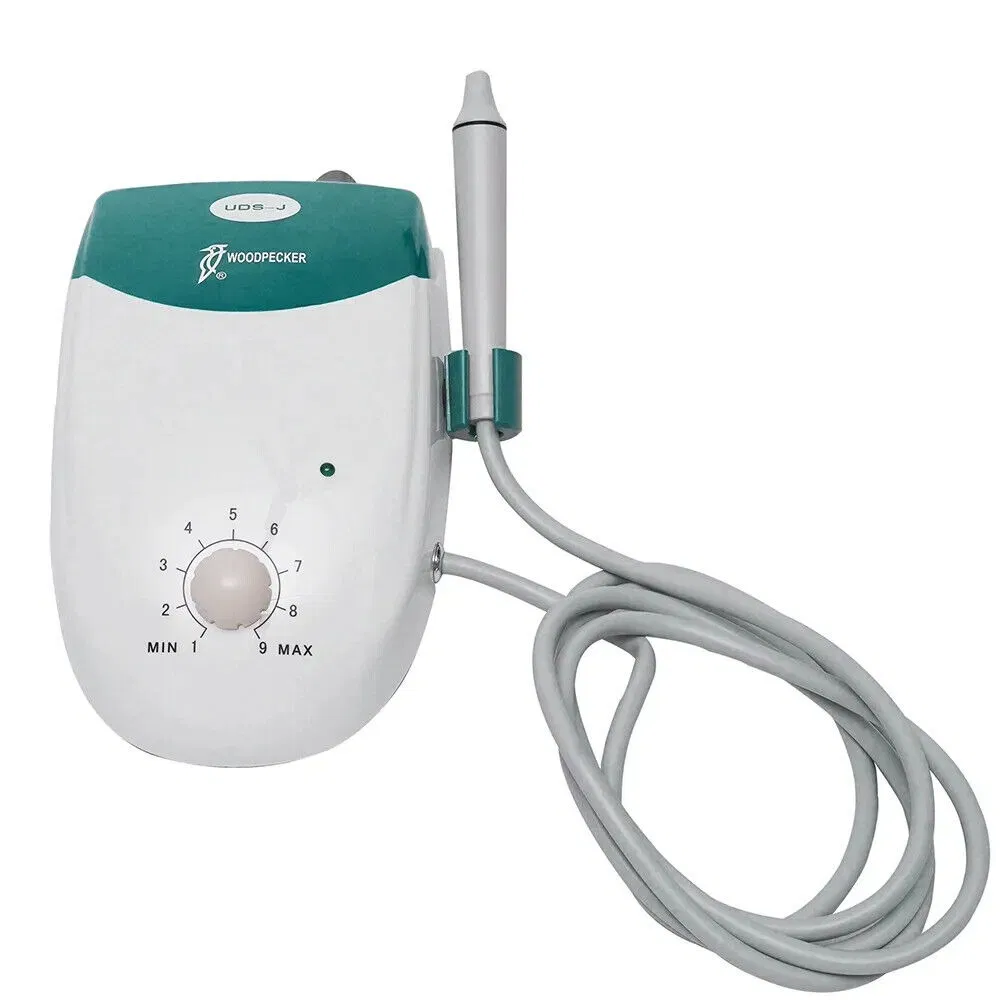

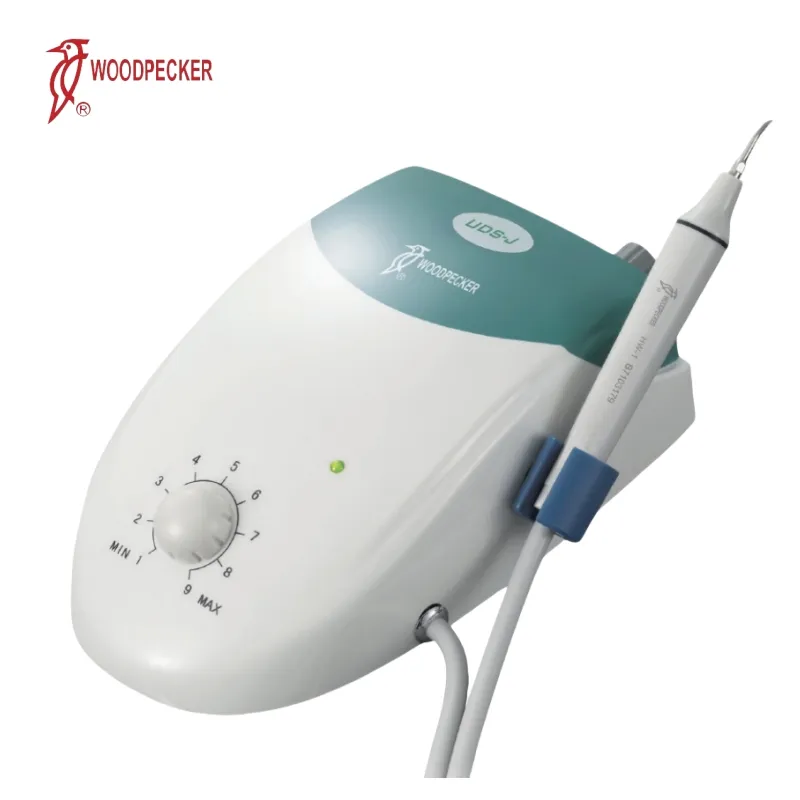

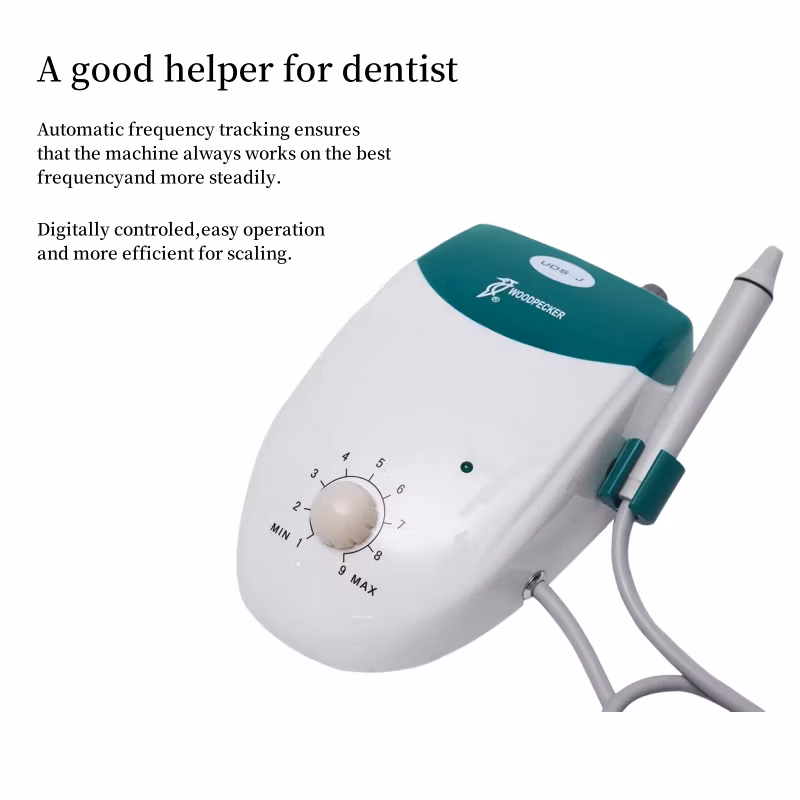

Woodpecker UDSJ Ultrasonic Scaler (Without Bottle)

Description

The Woodpecker UDSJ Ultrasonic Scaler is a professional dental scaling device designed for efficient removal of plaque, calculus, and stains during routine dental procedures. It uses ultrasonic vibration technology to deliver precise and controlled scaling while maintaining patient comfort.

This model is supplied without a built-in water bottle and is intended to be connected directly to an external water source, making it suitable for fixed dental units and fully equipped clinics. The scaler operates at a stable ultrasonic frequency, ensuring consistent performance during long clinical sessions.

With a lightweight main unit and ergonomic handpiece design, the Woodpecker UDSJ supports comfortable handling and reduced operator fatigue. Its adjustable power output allows dental professionals to tailor scaling intensity based on clinical needs, from light cleaning to heavier calculus removal.

Primary users include dentists, dental hygienists, dental surgeons, and dental clinics seeking a durable and dependable ultrasonic scaler for daily professional use.

Key Features & Specifications

• Model: UDSJ (USD J)

• Technology: Ultrasonic dentistry scaler

• Power input: 220–240V ~ 50/60Hz, 150 mA

• Main device input: 24V ~ 50/60Hz, 1.3A

• Output power: 3–20 W

• Vibration frequency: 30 kHz ±3 kHz

• Primary tip vibration deviation: ≤100 μm

• Half excursion output force: <2 N

• Water pressure requirement: 0.01 – 0.5 MPa

• Main unit weight: 0.8 kg

• Power supply weight: 1 kg

• Fuse (main unit): T1.6AL 250V

• Fuse (power supply): T0.5AL 250V

Ideal For

• Dental clinics and hospitals

• Dentists and dental surgeons

• Dental hygienists

• Teaching and training dental institutions

• Routine scaling and periodontal maintenance
