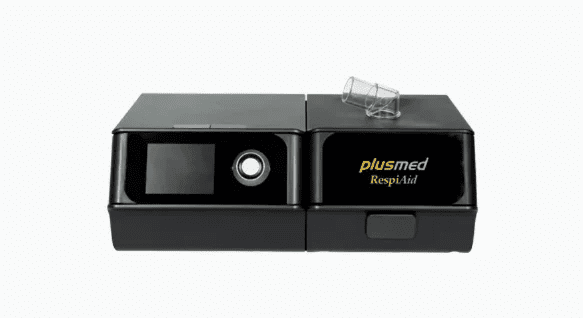

RespiAid BPAP-30T Pro
23 people are viewing this right now
Guaranteed safe & secure checkout
Description
Reviews (0)
Questions
Description
Key Features
-
Bi-level pressure support (IPAP/EPAP) up to 25 hPa
-
Quiet operation at ≤30 dB
-
Continuous mode with ≥8 hours runtime
-
Dynamic pressure stability with ramp time up to 60 minutes
-
Integrated humidifier with ≥240 ml capacity
-
SD card with ≥8GB memory for treatment data logging
-
Lightweight design (<1.6 kg with humidifier)
-
IP22 water resistance (drip-proof)
-
Large LCD display and intuitive controls
-
Class II, Type BF medical device
Specifications
| Category | Specification |
|---|---|
| Device Size | 140 × 156 × 94 mm (without humidifier) 262 × 156 × 94 mm (with humidifier) |
| Environment Conditions | Operation: 5℃–35℃, 10–93% RH (non-condensing), 760–1060 hPa Storage: -20℃–60℃, 10–93% RH (non-condensing), 760–1060 hPa |
| Production Date | Listed on device label |
| Operating Life | ≥5 years (with proper maintenance & cleaning) |
| Working Mode | Continuous mode, ≥8 hours continuous operation |
| Power Supply | 100–240 V AC, 50/60 Hz, ≤2 A |
| SD Card | ≥8 GB storage for therapy data |
| Security Classification | Class II, Type BF Applied Part |
| Waterproof Level | IP22 – Drip-proof |
| Pressure Range | 4–25 hPa (±0.5 hPa) |
| Pressure Display Accuracy | ±0.5 hPa |
| Adjustable Pressure Range | Refer to device manual (Section 3.4) |
| Operating Mode | Refer to device manual (Section 3.4) |
| Ramp Time | 0–60 minutes (adjustable) |
| Noise Level | ≤30 dB (at 10 hPa output pressure) |
| User Connector | φ22 mm cone joint |
| Filter Specification | Most penetrating particle size: 10μm |
| Max Pressure at Patient Connector | Single Level: 20 hPa (normal), ≤30 hPa (fault) Bi-Level: 25 hPa (normal), ≤40 hPa (fault) |
| Ventilation Flow Rate | 80–90 L/min (varies with pressure level) |
Ventilation Performance
| Pressure (hPa) | Flow Rate (L/min) |
|---|---|
| 4 | ≥80 |
| 9 | ≥90 |
| 15 | ≥90 |
| 20 | ≥70 |
| 25 | ≥70 |
Dynamic Pressure Stability
| Pressure (hPa) | 10 BPM | 15 BPM | 20 BPM |
|---|---|---|---|
| 4 | ±0.5 | ±0.55 | ±0.60 |
| 9 | ±0.80 | ±0.85 | ±0.85 |
| 15 | ±0.95 | ±0.95 | ±0.95 |
| 20 | ±0.95 | ±0.95 | ±1.0 |
| 25 | ±1.0 | ±1.0 | ±1.0 |
Humidifier Specs
| Parameter | Value |
|---|---|
| Temperature Range | Adjustable (0–5) |
| Output Gas Temperature | ≤43°C |
| Water Tank Capacity | ≥240 ml |
Tube Details
| Length | 1.8 m ±0.18 m, Ø22 mm |
Device Weight
| Without Humidifier | <1 kg |
| With Humidifier | <1.6 kg |
